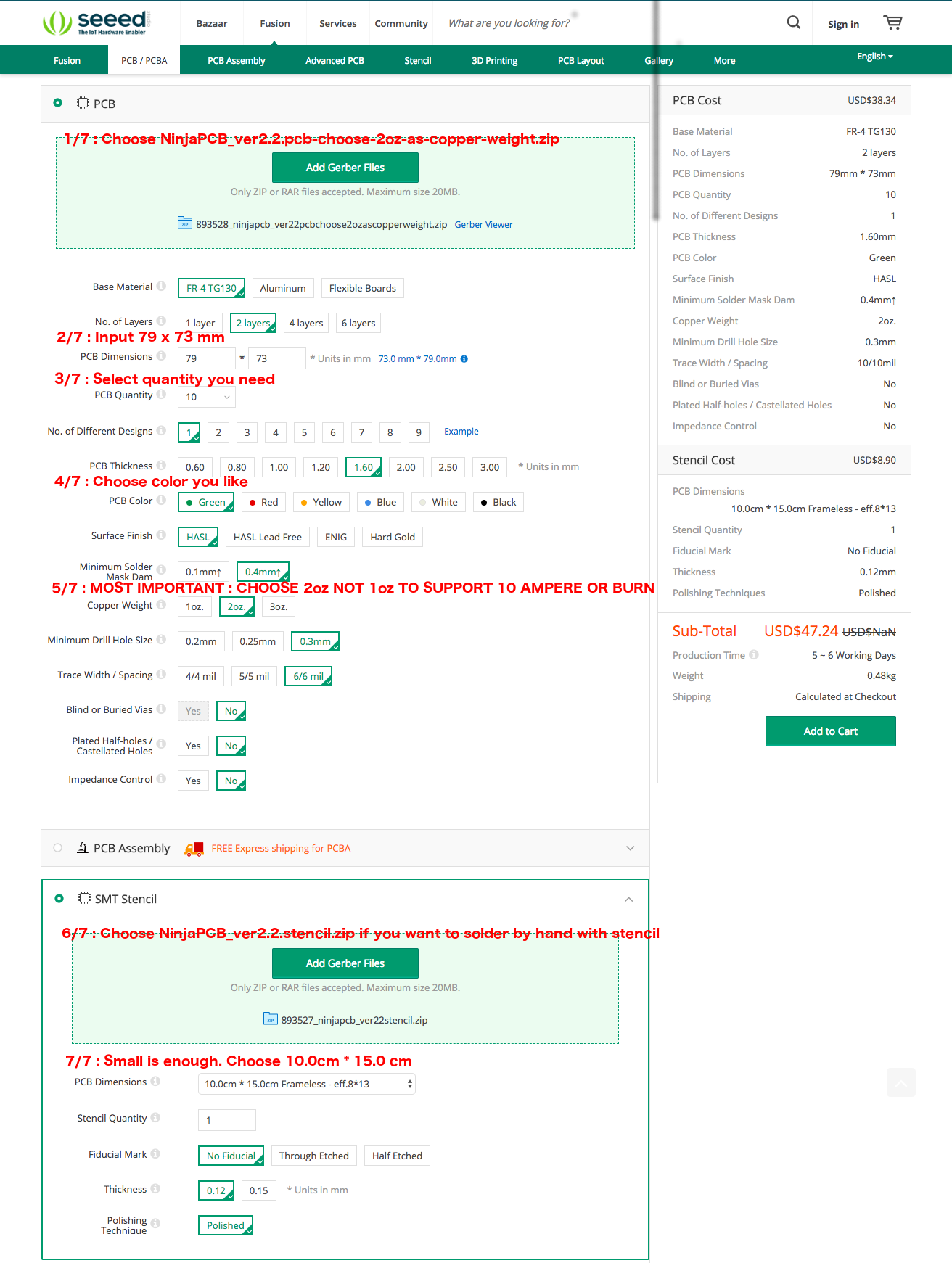

Order PCB and Stencil
| Name | File name |
|---|---|
| Circuit | NinjaPCB_ver2.2.sch |
| Layout | NinjaPCB_ver2.2.brd |
| Gerber Data | NinjaPCB_ver2.2.pcb-choose-2oz-as-copper-weight.zip |
| Stencil Data | NinjaPCB_ver2.2.stencil.zip |
Order Electric Parts
Here is the list to solder. If you use ATX power supply instead of adapter, no need to solder JACK nor DIN4 but ATX. You can choose Wi-Fi module from cheaper ESP-12F (FCC, CE) or ESP-WROOM-02 (FCC, CE, SRRC, TELEC, IC, KCC). Check which license is needed in your country. It is hard to find Heatsink and Relay outside Tokyo so we will sell it on shop. NinjaPCB is designed and tested with Seeed OPL(Open Parts Library). Keep in mind that some alternatives in this list are not yet tested.
| Name | ID | OPL ID | Datasheet | pieces |
|---|---|---|---|---|
| IC1 | SN74LVC1G66DBVR | Datasheet | 1 | |
| IC2 | NAU7802SGI | Datasheet | 1 | |
| RD1,RD2,RH,RL1,RL2 | ERA-3AEB153V | Datasheet | 5 | |
| RT | ERA-3AEB4991V | Datasheet | 1 | |
| Q1 | IRLB3813PBF | Datasheet | 1 | |
| ATX | 1-1775099-3(Cut Boardlock) | Datasheet | 1 | |
| FAN | 22-04-1031 | Datasheet | 1 | |
| HEATER_POWER,HEATER_TEMP,PELTIER | Aliexpress | 320110028 | Datasheet | 3 |
| REG | ZLDO1117G33TA(Untested) | 310030097 | Datasheet | 1 |
| Q2,Q3 | DMN3404L-7(Untested) | 305030015 | Datasheet | 2 |
| Q4,Q5,Q6 | 2SC3325-Y | 305010018 | Datasheet | 3 |
| R1,R2,R3,R4,R5,R6,R7,R8,R10,R11,R12,R15,R16,R18,R20 | RC0603JR-0710KL | 301010293 | Datasheet | 15 |
| R13,R17,R19,R22 | RC0603JR-071KL | 301010291 | Datasheet | 4 |
| C1,C5 | CC0603KRX7R9BB104 | 302010138 | Datasheet | 2 |
| C2,C4 | TAJB226K016RNJ | 302020013 | Datasheet | 2 |
| C3 | EEV-FK1E102Q(Untested) | 302030098 | Datasheet | 1 |
| D1,D2 | SM4007PL-TP(Untested) | 304010013 | 2 | |
| Solder these 2 only if you use ESP-12F. | ||||
| ESP1 | ESP-12F | Datasheet | 1 | |
| CP1 | CC0603KRX7R9BB104 | 302010138 | Datasheet | 1 |
| Solder these 2 only if you use ESP-WROOM-02. | ||||
| ESP2 | ESP-WROOM-02 | Datasheet | 1 | |
| CP2 | CC0603KRX7R9BB104 | 302010138 | Datasheet | 1 |
| These 2 will be solder on our webshop. | ||||
| Heatsink | 11PB015-01025(+M3 6mm screw) | Datasheet | 1 | |
| RELAY | EP2-3L3SAb | Datasheet | 1 | |
| No need to solder if you use ATX power supply | ||||
| JACK | EJ508A(Untested) | 320120003 | Datasheet | 1 |
| DIN4 | Aliexpress | 1 | ||
| No need to solder. | ||||
| R21,R14,R9 | 0 | |||
Print Solder Paste
Please Stand By.
Mount SMD Parts
Please Stand By.
Reflow
Please Stand By.
Solder DIP Parts
Please Stand By.
Next step : Well
